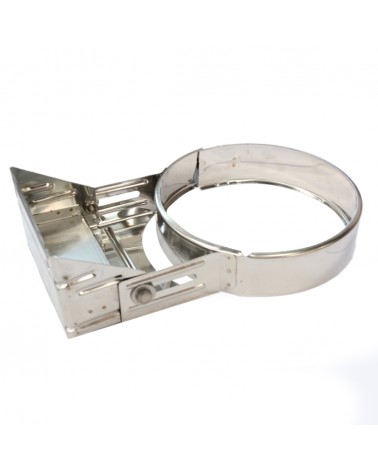

Adjustable Wall Support (70-120mm ) 5"Stainless

Adjustable wall support bracket for 5" twinwall flue. Allows pipe to stand 70-120mm off the wall.


Our superior stainless steel insulated twinwall flue system for use with solid fuel appliances. Dinak has the strongest interlocking joint system on the market today, making it popular with top installers who need to rely on a quality system every time.

Note: A Base support is not usually required with our system as the standard wall supports are strong enough to support the weight of the system (when used at every second Joint)

Note: A locking band is required at each joint in the Twinwall system.

Main Features

• Simple, easy push-fit system
• HETAS Approved
• High mechanical resistance to vertical and horizontal forces
• 60mm clearance to combustibles
• No thermal bridge, insulation continuity throughout the system
• Thermal expansion absorbed in each element
• High working temperature: 600°C under continuous operation

Applications

• Solid fuel appliances, wood and multifuel stoves
• Biomass boilers
• Domestic heating and hot water systems
• Hot air generators
• Bakery ovens
• Ventilation and smoke extraction
• Industrial / commercial heating

Materials

Inner wall: 316L Stainless Steel
Outer wall: 304 Stainless Steel
Insulation: 30mm Rockwool
