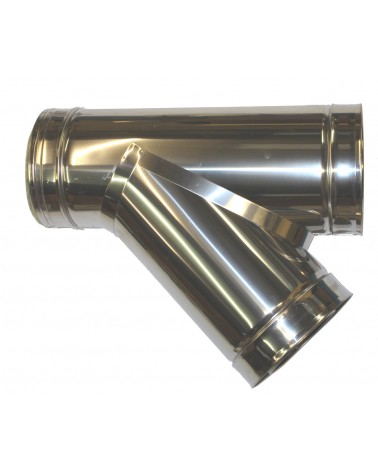

135 Tee 4" Twinwall Stainless

£184.69
In Stock

Inner Diameter 100mm, external diameter 150mm

Our superior stainless steel insulated twinwall flue system for use with solid fuel appliances. Dinak has the strongest interlocking joint system on the market today, making it popular with top installers who need to rely on a quality system every time.


Note: a locking band is required at each joint in the twinwall system.

Main Features

• Simple, easy push-fit system
• HETAS Approved
• High mechanical resistance to vertical and horizontal forces
• 60mm clearance to combustibles
• No thermal bridge, insulation continuity throughout the system
• Thermal expansion absorbed in each element
• High working temperature: 600°C under continuous operation

Applications

• Solid fuel appliances, wood and multifuel stoves
• Biomass boilers
• Domestic heating and hot water systems
• Hot air generators
• Bakery ovens
• Ventilation and smoke extraction
• Industrial / commercial heating


Materials

Inner wall: 316L Stainless Steel

Outer wall: 304 Stainless Steel

Insulation: 30mm Rockwool
